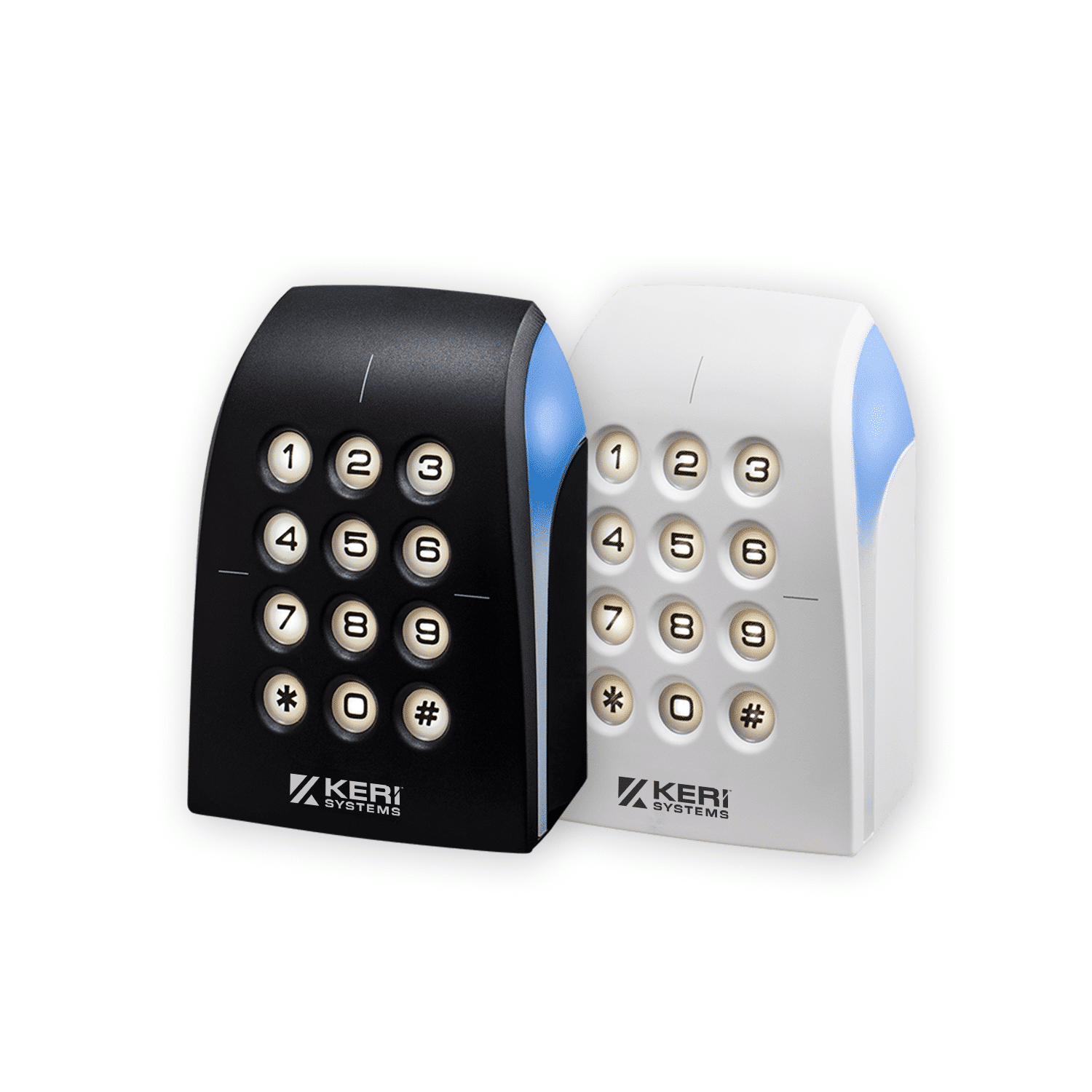

Aurora Arc Keypad
The reader features a backlit keypad for multi-factor identification. It combines the use of an RFID card with a personal keypad code. The reader and keypad support dual identification methods by integrating card and/or PIN code verifications.
With various operating modes available (either card AND PIN or card OR PIN), the keypad can be used not only for user identification but also to activate additional functions.
Available With Multi-Technology
125KHz, or Hybrid + 13.56 MHz + Bluetooth Aurora® Blue Keypad reader/writer – OSDPâ„¢ v1 & v2 secure protocol – Secure storage EAL5+ – RS485 interface

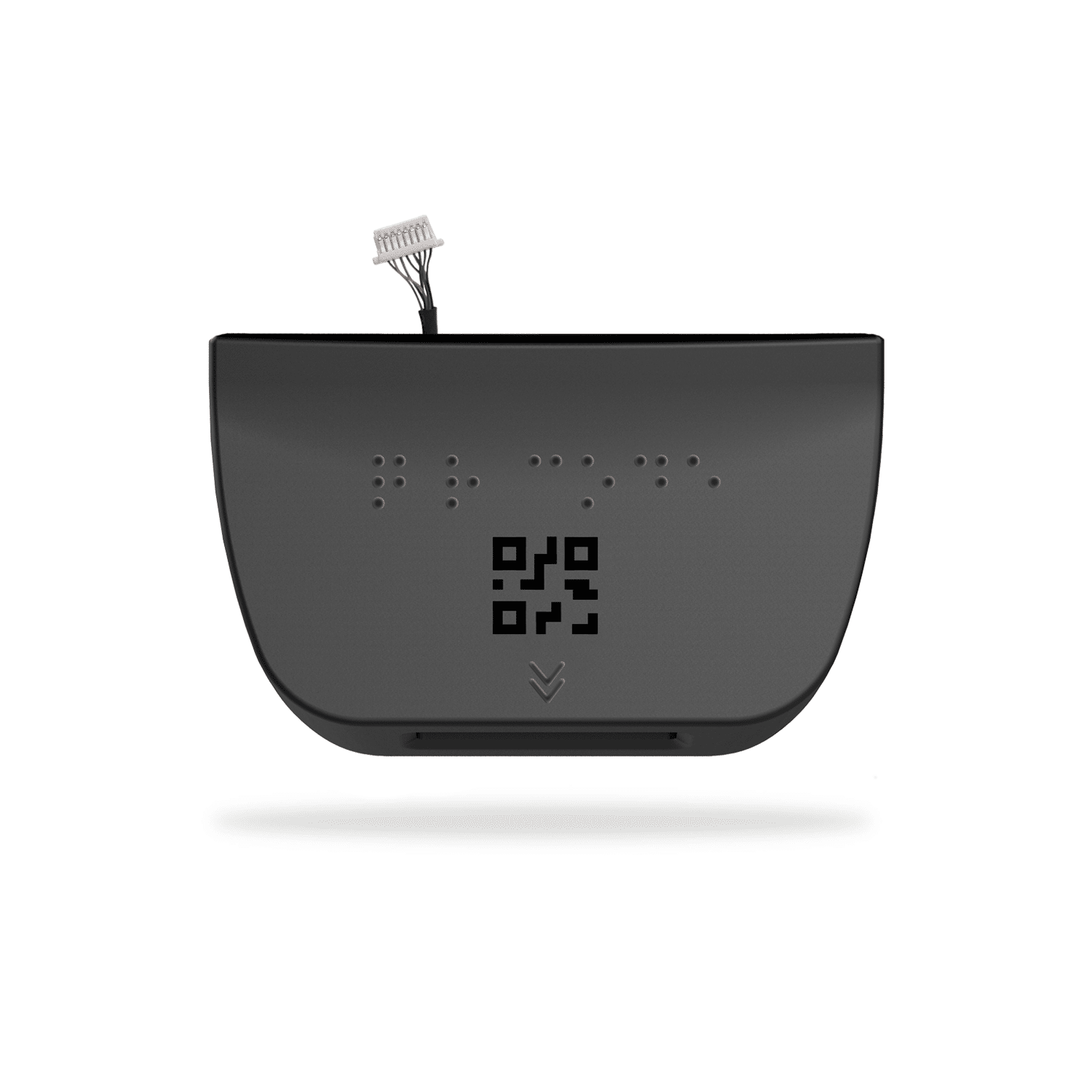

Modular Design (QR Code Add-On)
Allows for additional QR and Biometric modules, enabling you to issue QR Codes from within Borealis via email – perfect for temporary access at your buildings/facilities.
Dimensions (h x w x d): 106,64 x 80 x 25,70 mm / 4.21’’ x 3.15‘’ x 1.02’’
Reading distances: 0 – 6 cm / 2.36’’
The same reader can operate in multiple modes, enabling card reading for personnel or code entry for visitors and temporary workers.
- RFID MiFare® DESfire® EV2 & EV3 Cards, NFC Smartphones
- Interoperable And Multi-Protocol
- Vandal Resistant IK08 & IP65
- Simplified Installation With Plug-in Terminal Block
- Rugged Design For Indoor & Outdoor Use
- Multi-Factor Identification With Keypad & Credential
RFID MIFARE® DESFire® EV2 & EV3
The reader supports the latest MIFARE® DESFire® EV2 & EV3 contactless technologies with the newest data security devices:
• Secure Messaging EV2: transaction security that protects against interleaving and replay attacks.
• Proximity Check: protection against relay attacks.
Standards: ISO14443 types A & B, ISO18092 / Certifications: CE (Europe), UKCA ( United Kingdom), FCC (USA), IC (Canada), BIS (India), RCM (Australia & New Zealand), UL & RoHS
